CSA37F62

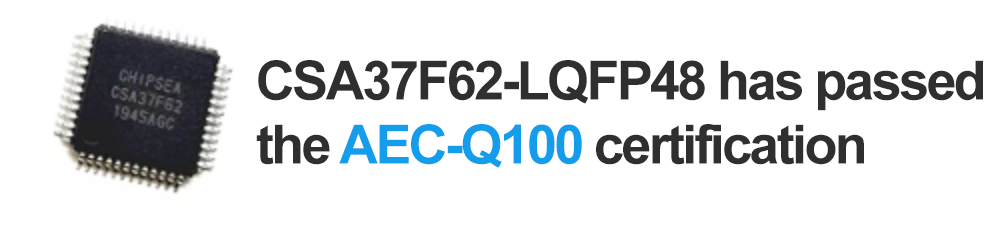

AEC-Q100 Grade 3 automotive qualification certification Supports MEMS and bridge resistor sensor detection Built-in 60K Flash. All structural problems can be easily solved by algorithms
Main features
Built-in 12-bit SAR ADC
Supports 8 fully differential or 16 single-ended inputs
Built-in PGA
32-bit RISC MCU, 60K Flash
Supports online debugging and upgrade
Supports 8 fully differential or 16 single-ended inputs
Built-in PGA
32-bit RISC MCU, 60K Flash
Supports online debugging and upgrade
Output interfaces
I2C interfaces, supports 100 kbps and 400 kbps
UART interfaces, supports up to 3 Mbps communication rate
GPIO interfaces, up to 16, supports open-drain/push-pull output ports
Input supports 1.8 V–5.5 V
UART interfaces, supports up to 3 Mbps communication rate
GPIO interfaces, up to 16, supports open-drain/push-pull output ports
Input supports 1.8 V–5.5 V
Packaging
LQFP48, 7 mm × 7 mm × 1.4 mm
Technical Documentation
Authentication(1)
Design and development
Tools/Software
_1667972453.jpg)
CSWrite V3.2.4
CSWriterUx V3.2.4 is the latest burning tool software of Core Sea Technology. Support core sea 8bit MCU, 32bit MCU.
_1667966589.jpg)
CSU-IDE
Core sea 8-bit MCU/SOC integrated development environment
1. Integrated C compiler, assembler, linker, window
2. Support standard C language and assembly language development 3 Example code of integrated chips
